Auto Tuning Failure Detection RFID Fixed Reader With RJ45 USB Interface

Brand Name : ZKHY

Model Number : ZK-RFID403

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 10,000pcs per month

Delivery Time : 3~7 working days after received your payment

Packaging Details : Packed in carton

Protocol : ISO 18000 6B, ISO 18000 6C(EPC Class 1GEN 2)

working frequency : 865~868MHz, 902~928MHz

RF Output : 0~30dbi(adjustable)

Work Ways : FHSS or Fix Frequency transmission

Interface : RS232/RS485,RJ45,GPIO,USB etc.

Output Port : 4 SMA Antenna Port

Operation Temperature : -20 +75℃

Dimension : 189*92*25mm

Contact Now

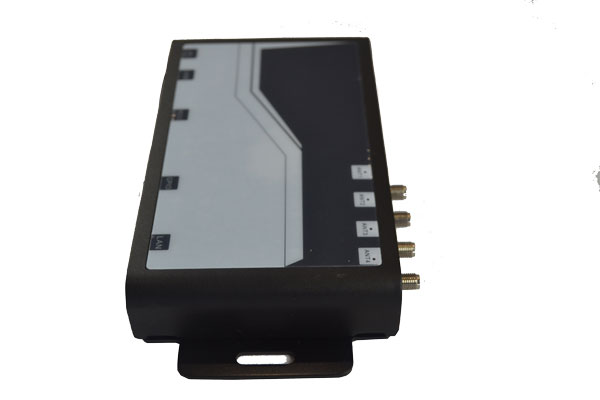

Impinj R2000 4 SMA Port Antenna Atuo Tuning Failure Detection UHF RFID Fixed Reader with RJ45 USB Interface

ZK-RFID403 is a high performance UHF RFID Fixed Reader. It can be widely applied in logistics, warehouse, asset, storage, retail management.

Competitive Advantage

  1. 4 SMA antenna port with antenna auto-tuning and failure-detection;
  2. Tag buffer size 600pcs@max 128bits EPC or 180pcs@max 496 bits EPC;
  3. Support answer and real-time-inventory Work mode;
  4. Low power dissipation with single +9 DC power supply;
  5. Support RSSI, maximum inventory speed over 500pcs
  6. Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
  7. Impinj R2000 RFID engine.

Specification

Protocols ISO18000-6B, ISO18000-6C (EPC CLASS1 G2 )
Working frequency 865~868MH, 902~928Mhz(can be Customized)
Chip Impinj R2000
Interfaces RS232/RS485, USB(Slave), GPIO,RJ45 with WiFi and POE optional
Output Port 4 SMA Antenna Port with antenna atuo-tuning and failure-detection
RF output power 0~30dBi(Adjustable)
Transmission mode FHSS or Fix Frequency transmission
Working mode Auto-running, answer,trigger-activating and real-time-inventory
Read Range Depends on antenna gain
Write Range Depends on antenna gain
Power Supply DC+9V
Signal Buzzer and LED
Storage temperature -10- +55℃
Operating temperature -20 +75℃
Item Size 189*92*25mm
N.W 360g

DESCRIPTION

  1. Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
  2. 860~868MHz/902~928MHz(can be customized);
  3. FHSS or Fix Frequency transmission;
  4. RF output power up to 30dbm(adjustable);
  5. 4 SMA antenna port with antenna auto-tuning and failure-detection;
  6. Tag buffer size 600pcs@max 128bits EPC or 180pcs@max 496 bits EPC;
  7. Support answer and real-time-inventory Work mode;
  8. Low power dissipation with single +9 DC power supply;
  9. Support RSSI, maximum inventory speed over 500pcs
  10. Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
  11. Designed with Impinj R2000 RFID engine.

Applications

  1. Goods flow management, warehouse management, and mail flow management, parcel and luggage flow management, etc.
  2. Intelligent parking management: parking lot management and E-Toll.
  3. Library management, school management, asset management, inventory management, attendance management, container tracking and logistics, etc.
