15m Read Range Integrated RFID Reader For Logistics Management

Product Categories

ShenZhen ZKHY RFID Technology Co., Ltd.

Contact Now

Name: 15m Read Range Integrated RFID Reader For Logistics Management
Brand: ZKHY
Price: 1 USD

Brand Name : ZKHY

Model Number : ZK-RFID102IP

Place of Origin : China

MOQ : 1pc

Price : USD, RMB, Negotiable

Payment Terms : T/T ，western Union，Paypal

Supply Ability : 10,000pcs per month

Delivery Time : 3~7 working days after received your payment

Packaging Details : Packed in carton

Protocol : EPC C1G2, ISO18000-6B

Antenna Gain : 12dbi

Interface : TCPIP, RJ45, RS232, Wiegand26

Dimension : 445*445*65mm

Operating Mode : Answer, Active, Trigger-actived

Reading Clue : Buzzer

N.W : 2600g

G.W : 5000g

Contact Now

15m Read Range Transportation Management TCPIP RJ45 UHF RFID Integrated Reader

Description:

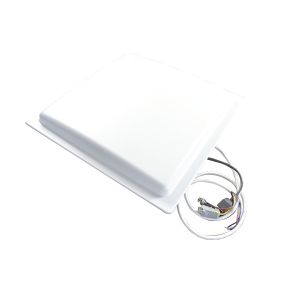

ZK-RFID102IP is a long range UHF RFID Integrated Reader with RJ45 interface to realize fast data transimit.

Competitive Advantage:

Specifications:

Model	ZK-RFID102
Protocol	ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Work Frequency	902~928MHz or 865~868MHz
Frequency Hopping	FHSS or fixed frequency
Power Output	0~30dBm(adjustable)
Antenna	Built-in 12dBi linearized polarized antenna
Interface	TCPIP(RJ45), RS232, RS485, wiegand 26/34
Operating Mode	Answer, Active, Trigger
Read Range*	0~15m
Write Range*	0~6m
Reading Clue	Buzzer
Input Power	100~240V,DC+9V (Power Adapter)
Dimension	44544565mm
N.W	2600g
G.W	5000g
Operation Temp	-25°C~+60°C
Storage Temp	-25°C~+80°C
Humidity	80%

* Effective distance depends on protocol, antenna, tag and environment.

Applications:

Logistics management, access control.
Goods flow management, warehouse management, and parcel/luggage management, etc.
Production line management: fixed-point identification in production process.
School management, asset management, attendance management, etc.

15m Read Range Integrated RFID Reader For Logistics Management
